The Moore Nanotechnology ultra-precision machining systems support single point diamond turning, deterministic micro-grinding, precision micro-milling, and glass press molding for the production of advanced optics including diamond turning sphere, asphere, freeform, conformal, lens array, and plano surfaces. We offer a diverse line of options and accessories to customize our machining platforms to suit our customer’s specific applications.


The most compact ultra-precision CNC diamond turning lathe. Used for the rapid production of spherical & aspheric optical lenses, mirrors, mold inserts, freeform optics, and even mechanical components.

If your application fits within a 350mm diameter window (with optional riser package), this machine may be the ideal solution for your ultra precision needs.

Achieves both sub-nanometer level surface finishes and sub-micron form accuracies directly off the machine in a wide variety of materials.



Detail specifications

Videos


The mid-size capacity ultra-precision machining system.

This system is suitable for both single point diamond turning and deterministic micro-grinding of optical elements.

Applications examples include the manufacture of components used in a wide variety of markets such as electro-optics, aerospace, defense, consumer electronics, bearing, and computer industries.

The standard model offers a 450mm diameter swing capacity, but increased swing configurations are available upon request.

Detail specifications

Videos


This flag ship machine has been proven worldwide to be the most flexible, precise, and user friendly ultra precision freeform diamond turning system available.

With a minimum of three precision linear X, Y, and Z axes, the 650FGv2 is expandable to a five-axis system via optional B & C rotary axes.

With the main work spindle centrally integrated within an oil hydrostatic Y-axis carriage, advanced machining methods such as raster flycutting of linear diffractives and freeforms, micro-prismatic optical structures, micro-milling of aspheric lens arrays as well as Slow Slide Servo (S3) machining of toric, biconic surfaces is achievable.

Detail specifications

Videos


COMPACT SYSTEM FOR MOLD PIN MANUFACTURING

Machine design specifically engineered for optical mold pin manufacturers seeking the highest quality surface results. Available in both diamond turning and grinding configurations. Expansion of the basic 2-axis system is simple. One can have up to 4 axes of continuous path motion via the addition of C and/or B rotary axes. The C-axis motion control of the work spindle enables toric, biconic, and other freeform surfaces to be machined “on-axis” via our Slow Slide Servo (S3) process. Our Oil Hydrostatic Rotary B can be configured on the Z-axis slide for added versatility and is also part of the 250UPL-MP’s the wheel normal grinding configuration. It features an enhanced 5,000 rpm work spindle design engineered specifically to address nickel mold pin surface quality. This 5K rpm spindle has guaranteed radial runout of less than 10nm and axial runout of less than 4nm up to 3,000 rpm.

Detail specifications

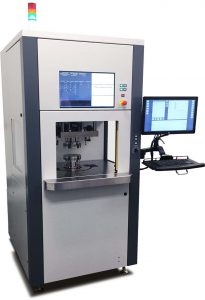

The Nanotech 170GPM is a glass press molding machine designed for precision glass optic applications in both wafer and individual lens form. It features a single molding chamber with a 170mm diameter capacity. This machine complements Nanotech’s 450UPL and 650FG systems which can be configured for ultra-precision grinding of mold components in various materials such as WC and SiC. Together, the combination of systems forms a next generation glass press molding cell.

Single 170mm Diameter Chamber

Tungsten Carbide Floating Mold Set

Detail specifications

Videos

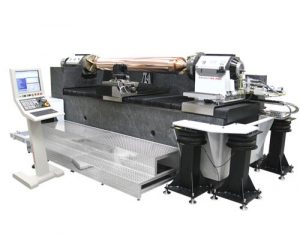

Large Capacity Horizontal Drum Lathe

This machine is available in two versions: the HDL2600-SD or HDL2600-HD. Both are extra large capacity ultra-precision machining systems used for single point diamond turning advanced optical surfaces along the diameter of large generation drums. Featuring high stiffness oil hydrostatic head stock and programmable CNC controlled W-axis tail stock, this machine accepts drums up to 650mm diameter and a maximum length of 3100mm (between chuck faces). Weight capacity 1800 Kg on SD (Standard Duty) vs 3000 Kg on HD (Heavy Duty). Maximum optical cutting zone length is 2600mm.



Fast Tool Servo Systems

Oil Hydrostatic B-axis Tooling Configuration

Detail specifications

Videos


With Moore Tool’s rich history in machine tool design, Moore Nanotechnology Systems and Moore Tool came together to develop next generation jig grinding technology. Through this partnership, an ultra-precision jig grinding machine was developed that is capable of achieving repeatable sub-micron form and positional accuracies in a wide variety of hardened steels, metals and other materials. Please click here for more information.

Optically Precise

NanoCAM4®

The only Ultra-Precision Programming Software You’ll Ever Need!

Ultra-Precision Symmetric & Freeform Programming Software Specifically Developed for the Optics Industry

N4 is the result of decades of customer interactions, diamond turning industry expertise and a belief that the future of our industry demanded a more complete easy to use programming package. N4 compliments the many advanced capabilities of Nanotech’s systems of today and in the future. It will strengthen your ultra precision programming skills and assist in enabling your machining systems to reach their highest level of potential.

Detail specification
